Combination Gas Valve
Product Details:
- Color Grey and Black
- Material Brass
- Valve Structure Diaphragm Valve
- Processing Type Standard
- Pressure Medium Pressure
- Application Solenoid valves
- Click to View more
Combination Gas Valve Price And Quantity
- 1 Unit
- 7500 INR/Unit
Combination Gas Valve Product Specifications
- Standard
- Solenoid valves
- Brass
- Medium Pressure
- Grey and Black
- Diaphragm Valve
Combination Gas Valve Trade Information
- Cash on Delivery (COD) Telegraphic Transfer (T/T) Cash in Advance (CID) Cheque Cash Advance (CA)
- 1000 Unit Per Week
- 1 Days
- Yes
- Sample costs shipping and taxes has to be paid by the buyer
- Western Europe Australia North America Eastern Europe Middle East Central America South America Asia Africa
- All India
Product Description

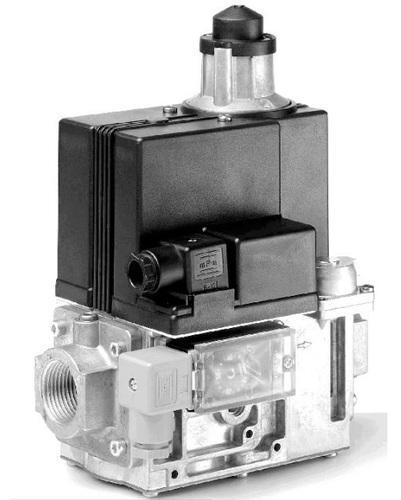

Class "A" Combination Gas Valve Series.
Sizes are available from 15mm to 50mm with modular design allowing other valves to be fitted to side of the valve body, such as a vent valve, pilot valve or external bypass valve. Special gas pressure switch models are availavke for direct mounting on either side of the valve body.
230 VAC Fast Opening V1 / Fast Opening V2 with flow rate adjuster
| |||||
| Model | Size | Electrical Connection | IP Rating | Max. Flow m3/h | Optional CPI |
| VQ420MB1003 | 20mm | PG11 | 54 | 8 | MS062001 |
| VQ420MB1011 | 20mm | DIN Plug | 65 | 8 | MS062001 |
| VQ425MB1004 | 25mm | PG11 | 54 | 11 | MS062501 |
| VQ425MB1012 | 25mm | DIN Plug | 65 | 11 | MS062501 |
| VQ440MB1005 | 40mm | PG11 | 54 | 31 | MS064001 |
| VQ440MB1013 | 40mm | DIN Plug | 65 | 31 | MS064001 |
| VQ450MB1006 | 50mm | PG11 | 54 | 40 | MS065001 |
| VQ450MB1014 | 50mm | DIN Plug | 65 | 40 | MS065001 |
Flange kits with screen, for mounting on inlet side (Ordered separately) | ||
| KTCOMS15 | 15mm Flange Kit for VQ420/25M | |
| KTCOMS20 | 20mm Flange Kit for VQ420/25M | |
| KTCOMS25 | 25mm Flange Kit for VQ420/25M | |
| KTCOMS32 | 32mm Flange Kit for VQ440/50M | |
| KTCOMS40 | 40mm Flange Kit for VQ440/50M | |
| KTCOMS50 | 50mm Flange Kit for VQ440/50M | |
| Fine particle filter, for mounting on inlet side (Ordered separately) | ||
| HFVR050 | Filter size 50 micron. Pack size 10pcs. | |
| HFVR150 | Filter size 150 micron. Pack size 10pcs | |
| Side valves: By-Pass Valves (Ordered separately) | ||
| VB420-series | By-pass Valves | |
| Side valves: Pilot Valves (Ordered separately) | ||
| VP420-series | Pilot Valves | |
| Side valves: Vent Valves, normally open (Ordered separately) | ||
| VV420-series | Vent Valves | |
| Gas Pressure Switches (Ordered separately) | ||
| C6097A2x00-series | Standard gas pressure switches for direct mount | |
| C60VR40xxx | Slim size gas pressure switches for direct mount | |
| DIN connector (Ordered separately) | ||
| CO020012 | Standard DIN connector, colour black. For DIN/IP65 models only | |
Gas Valve Type: | 2 safety shutoff valves in series without pressure regulator |
| First Safety Valve Operation (V1) | Always Fast Opening |
| Second Safety Valve Operation (V2) | Available Models: MA: Fast Open MB: Fast Open with flow rate adjust MC: Adjustable slow open (1-30 sec) with flow rate adjuster and step-open feature |
| Port Connection: | Honeywell Flanges |
| Medium: | Natural Gas, Propane, Butane |
| Material: | Valve Body: Aluminium die cast body Valve plunger: Chrome plated Fe 360B steel sliding on anti-friction bearing. Seals & Gaskets: Hydrocarbon resistant NBR rubber type. |
| Approvals: | AGA, GOST, CSA, CE approved, class "A" in accordance with EN161 |
| Maximum Operating Pressure: | 360 mBar |
| Maximum Closing Time: | 1 Second |
| Ambient Temperature: | -15 to 60°C |
