Modulating Heavy Oil Burners with Air/Steam Atomizing PRESS P/NA - P/NA ECO SERIES

Modulating Heavy Oil Burners with Air/Steam Atomizing PRESS P/NA - P/NA ECO SERIES

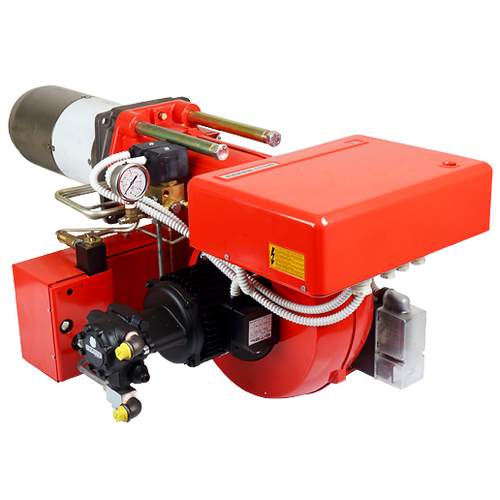

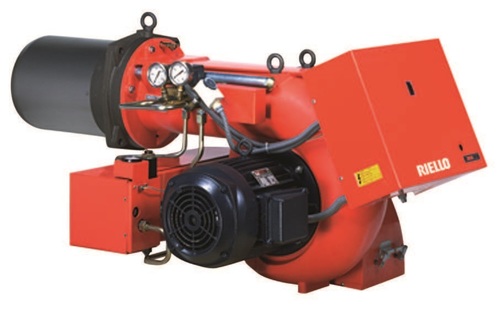

Heavy oil burner series P/NA is an evolution of the traditional heavy oil modulating burners P/N series.

The new range applies a different technology to replace the usual mechanical atomising (high pressure) by “assisted” air/ steam atomising (feed pressure 5-8 bar) and taking the related advantages when burning heavy fuels (even vegetal oil).

The upgraded design has been introduced to meet even the worst fuel qualities and to reach anyway the best achievable combustion performance (lower particulate and NOx emissions).

The capacity range is suited to cover applications on steam generators designed for production from 1 to 6 tons/hr of steam or an equivalent capacity in case of other kind of boiler. Reliable and smooth ignition is achieved by LPG pilot burner installed into the combustion head.

The control system includes all safety and operation interlocks, making possible the confi guration compliance to the latest design norms on world-wide base (i.e. EN 267 – UL 296 – others), by the available options on request.

P 140 P/NA 400/800 ÷ 1600 kWP 200 P/NA 570/1140 ÷ 2280 kWP 300 P/NA 683/1710 ÷ 3420 kWP 450 P/NA 1140/2615 ÷ 5130 kW

P 140 P/NA ECO 400/800 ÷ 1600 kWP 200 P/NA ECO 570/1140 ÷ 2280 kWP 300 P/NA ECO 683/1710 ÷ 3420 kWP 450 P/NA ECO 1140/2615 ÷ 5130 kW
